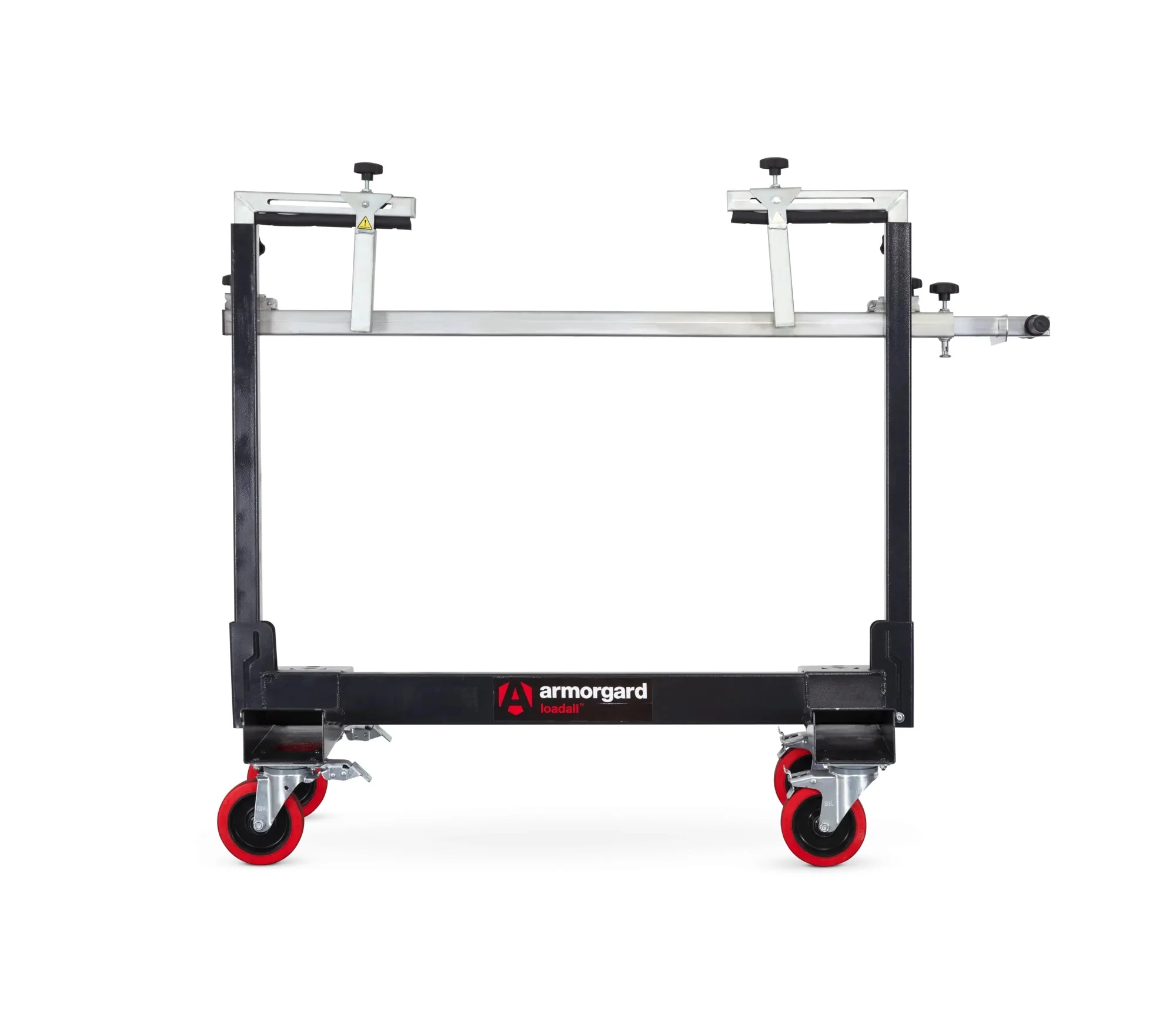

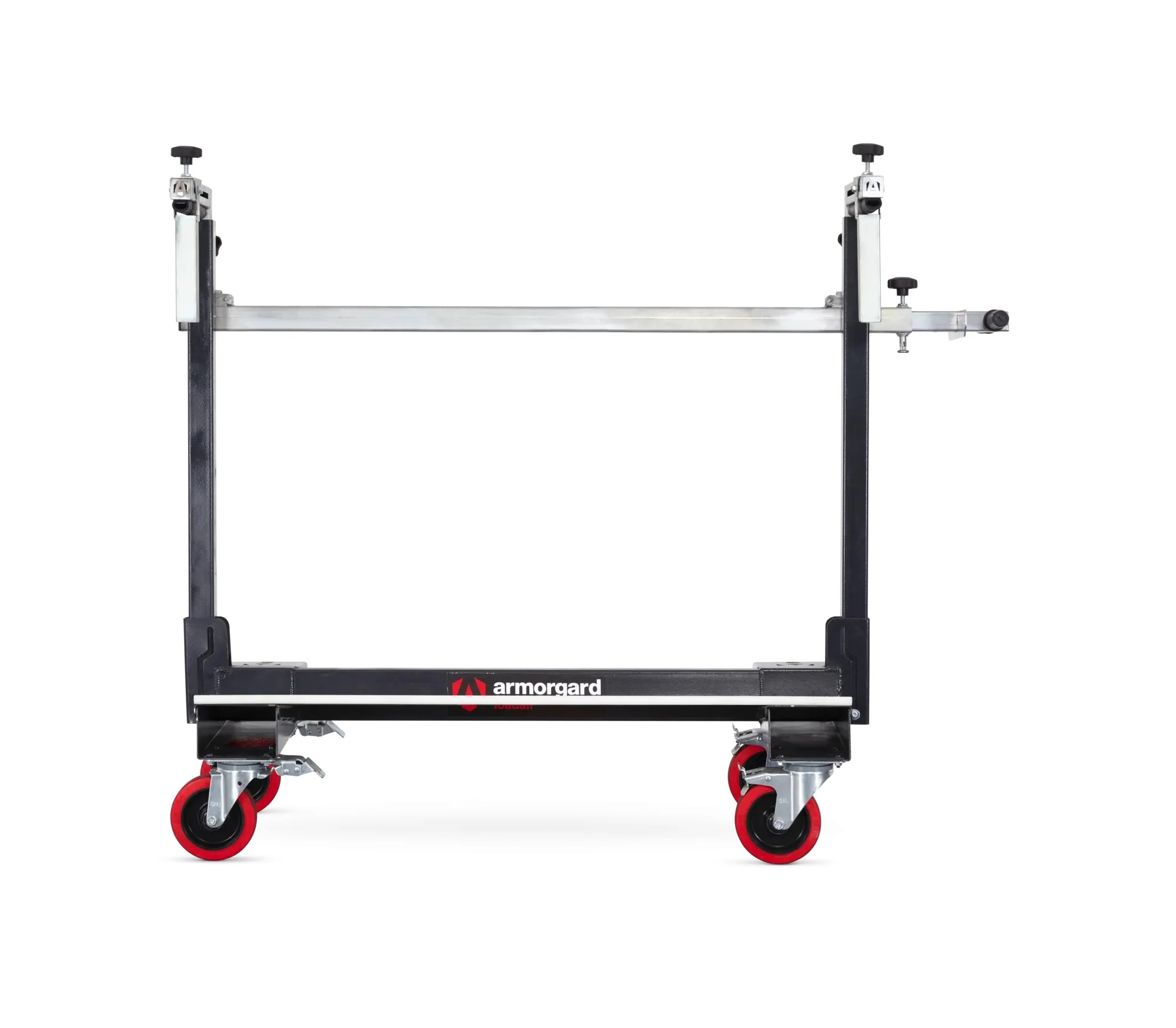

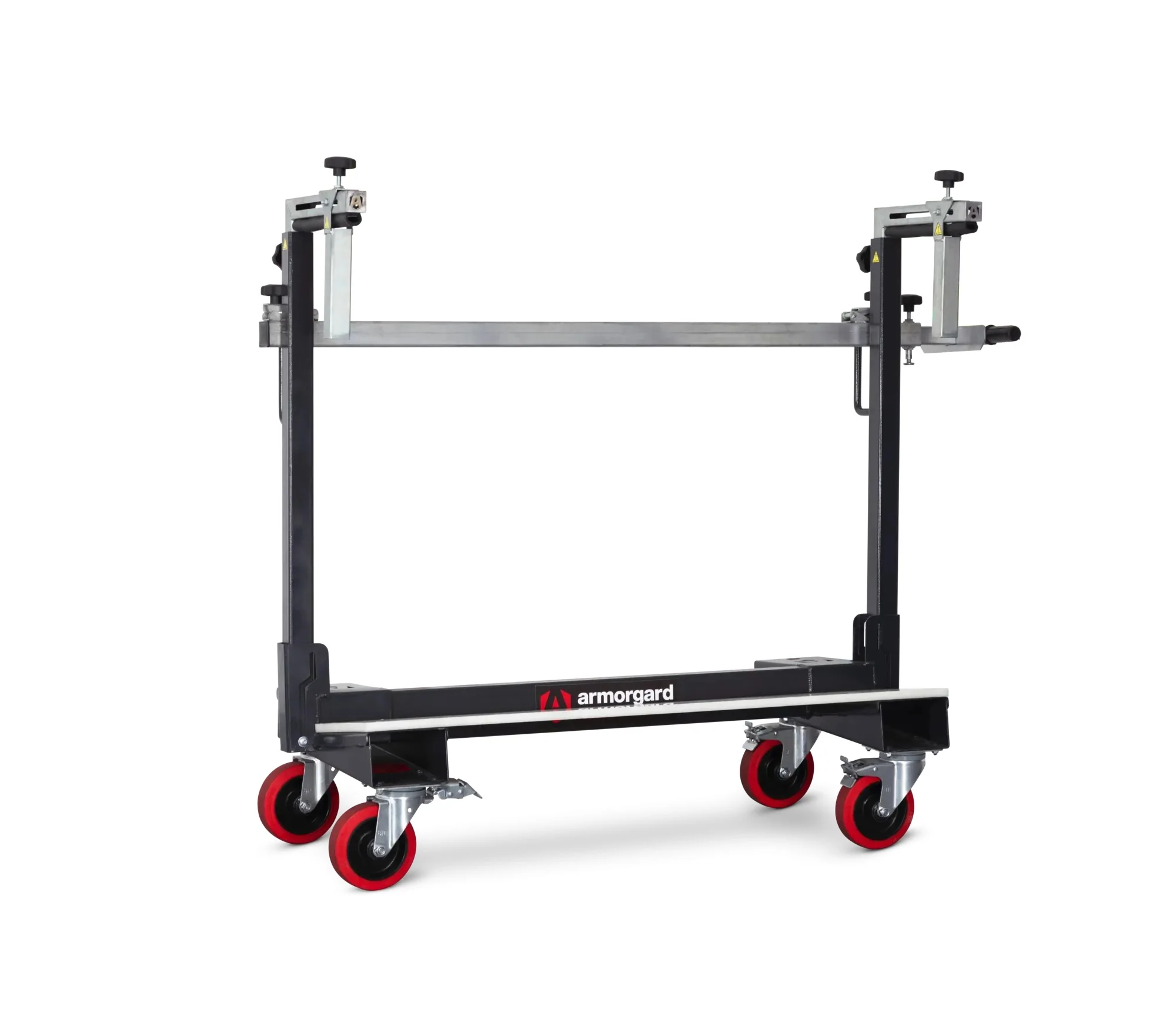

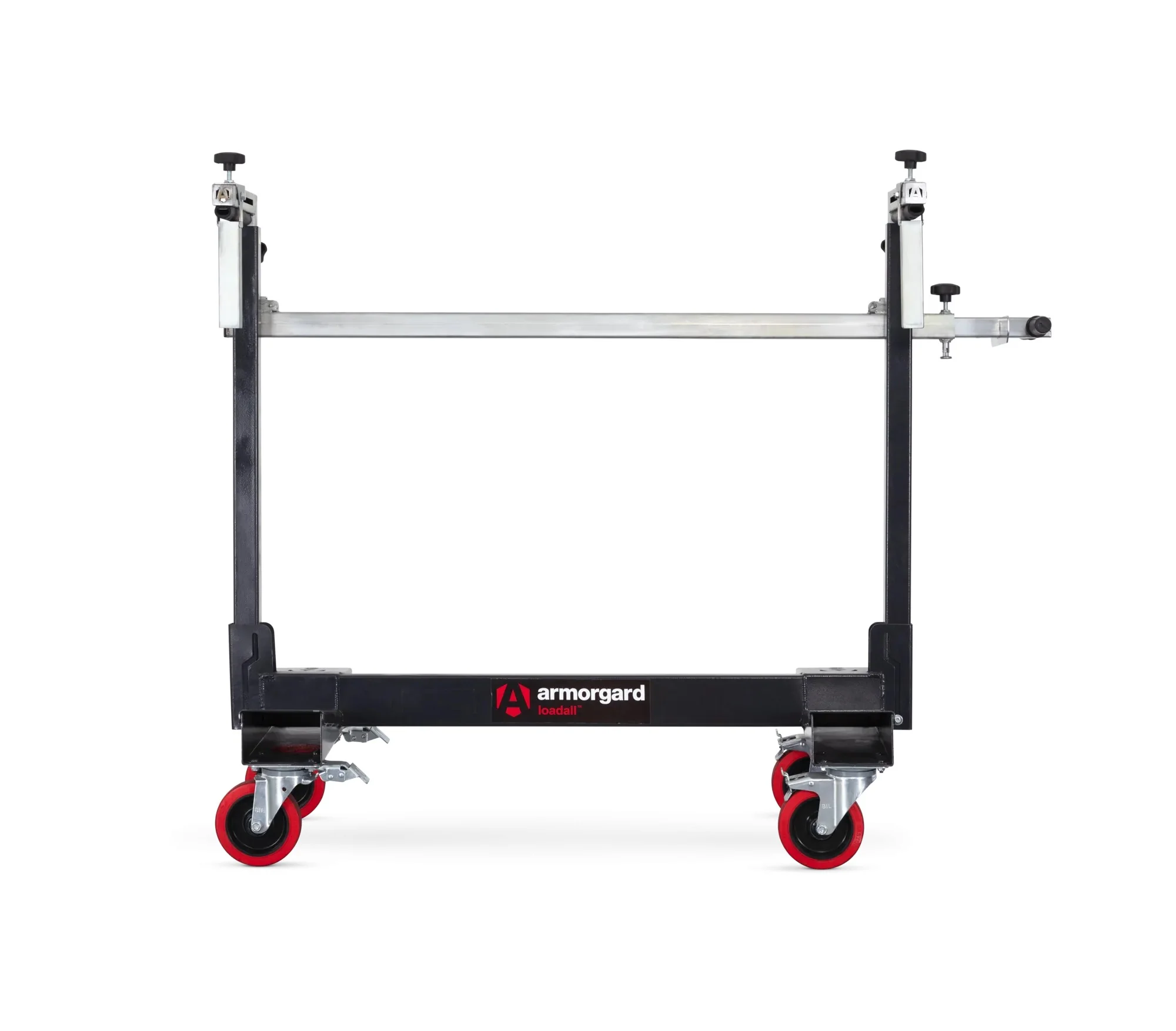

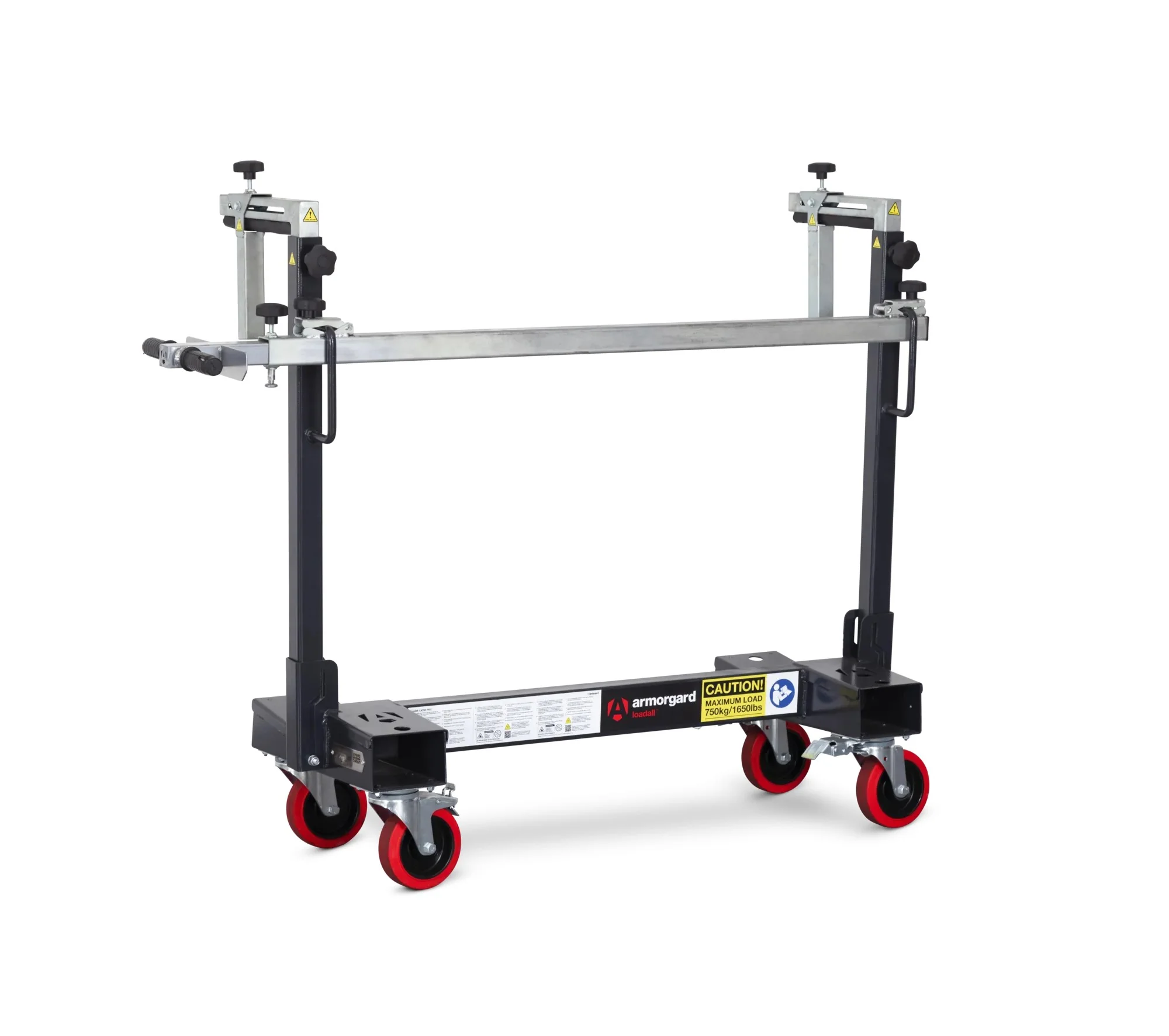

Simplify transporting and storing jobsite materials with Armorgard’s heavy-duty drywall cart, the LoadAll LA750-PRO. Engineered for easy loading and unloading, the drywall dolly features an H-frame design for easy navigation through tight spaces and an adjustable handle for smooth, controlled movement. Fitted with four swivel drywall cart wheels (two featuring directional locks), Armorgard’s sheetrock cart is simple to guide and steer around the jobsite. Plus, with a robust capacity of 1,650 pounds and adjustable arms, the LoadAll material handling cart is designed for heavy hauling and can accommodate a wide range of drywall sheet sizes. The drywall dolly cart features built-in safety elements, including a clamping kit with drop-safe features and an ergonomic, center-loaded design that keeps materials stable and balanced while in motion.

Patent number: 2417979.8

Features

• 1650-pound working load capacity
• Designed for on-site worker safety with strong clamp kit to secure materials in transit
• Built-in sheet stop at the end the clamp kit automatically stops the clamps at the height of a 4-foot board, reducing the risk of jobsite injury.
• Adjustable arms for easy loading and flexible storage capacity
• Telescopic handle with integrated measurement markings to guide positioning
• Rubber buffers on the material handling cart prevent damage to materials or your hands
• Collapsible design for safe and easy space-saving jobsite storage
• Unique H-frame design to maneuver around corners
• Four heavy-duty drywall cart wheels, two featuring directional locks

Specifications

Dimensions (W x D x H)	11.2in x 91.1in x 86.6in
Weight	156lbs
Color	Black grey: RAL 7021
Suitable for	Jobsite
Finished coating	Powder coated
Material & thickness	11 gauge steel
How are wheels installed?	Mounting Plates
Assembly required?	Yes
