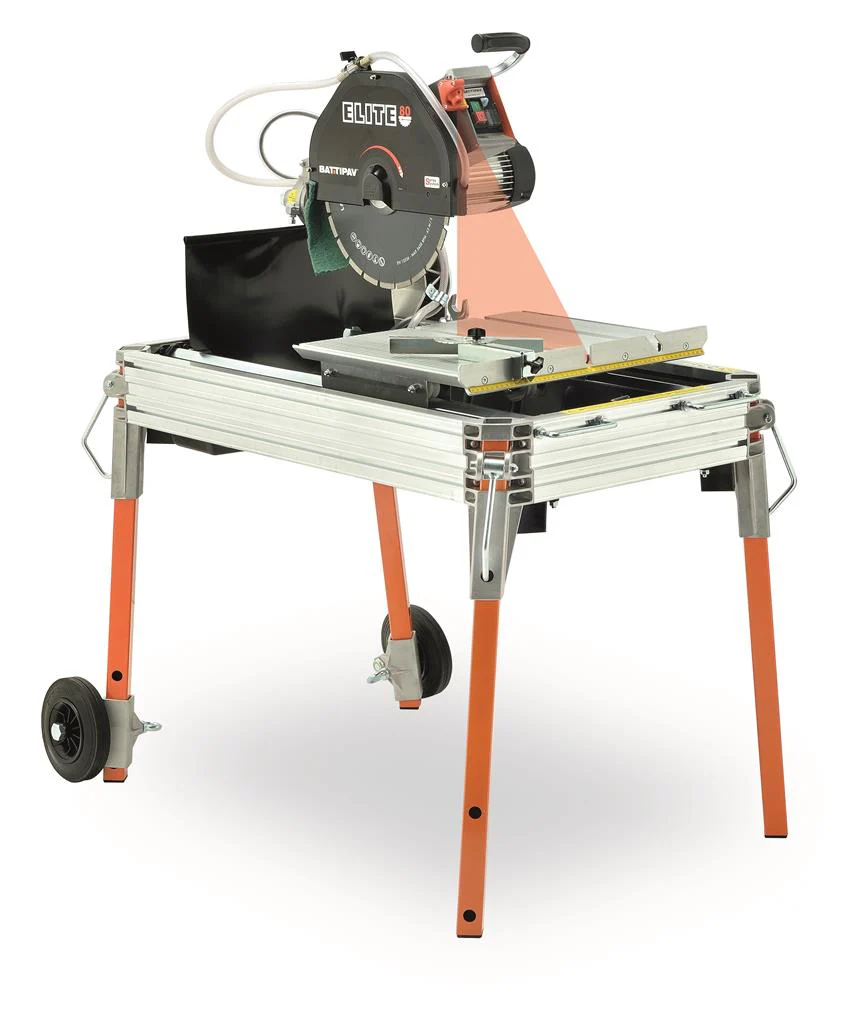

Battipav 14 in. Elite 80 Masonry Saw

BATTIPAV ELITE Masonry Saw with Laser

ELITE 80 is a masonry saw ideal for the building sector. Ergonomic design with van technical innovations, compact and strong, suitable for cutting bricks, stones, concrete-blocks, granite, marble and natural stones. It makes cuts pushing the sliding working table or tilting the cutting head. Planned to work with disks 350 mm. and, according to the version, laser instrument and kit wheels are supplied standard or as optional.

Features

• WORKING TABLE: Working table in aluminum draw-plate with grooves 10 mm wheelbase whose measure corresponds to that of the graduated scale fixed on the supporting rod
• CONTROL BOARD: Control board includes:
  Switch with release coil
  Overheat protection with manual reset in the event of the disk jamming
  Red light for signaling the presence to connection net
  Green light for signaling machine on function
  Laser instrument for the maximum cutting precision (optional in standard version)
• TILTING CUTTING HEAD: Tilting cutting head for one greater rapidity and precision in the execution of particular cuts. It can be locked at the wished height
• KNUCKLE JOINT
  Knuckle joint for the double adjustment:
  - Tilting of the cutting head
  - 45° angle cut
• CUTS AT 45° ANGLE (JOLLY): Position 45° angle cuts with relative tilting of the cutting head
• TRANSPORT: Built to reduce at the minimum the encumbrance during the carriage and above all the storage space

Specifications

Model No.	USA9001/B
Amperage	13 Amps
Bevel Capacity	45 degrees
Blade Length/Diameter	350mm
Cutting Capacity Height	110mm W/350mm Blade
Maximum RPM	2800
Number of Speeds	1
Power Source	Corded Electric
Type	Masonry Saw
Variable Speed	No
