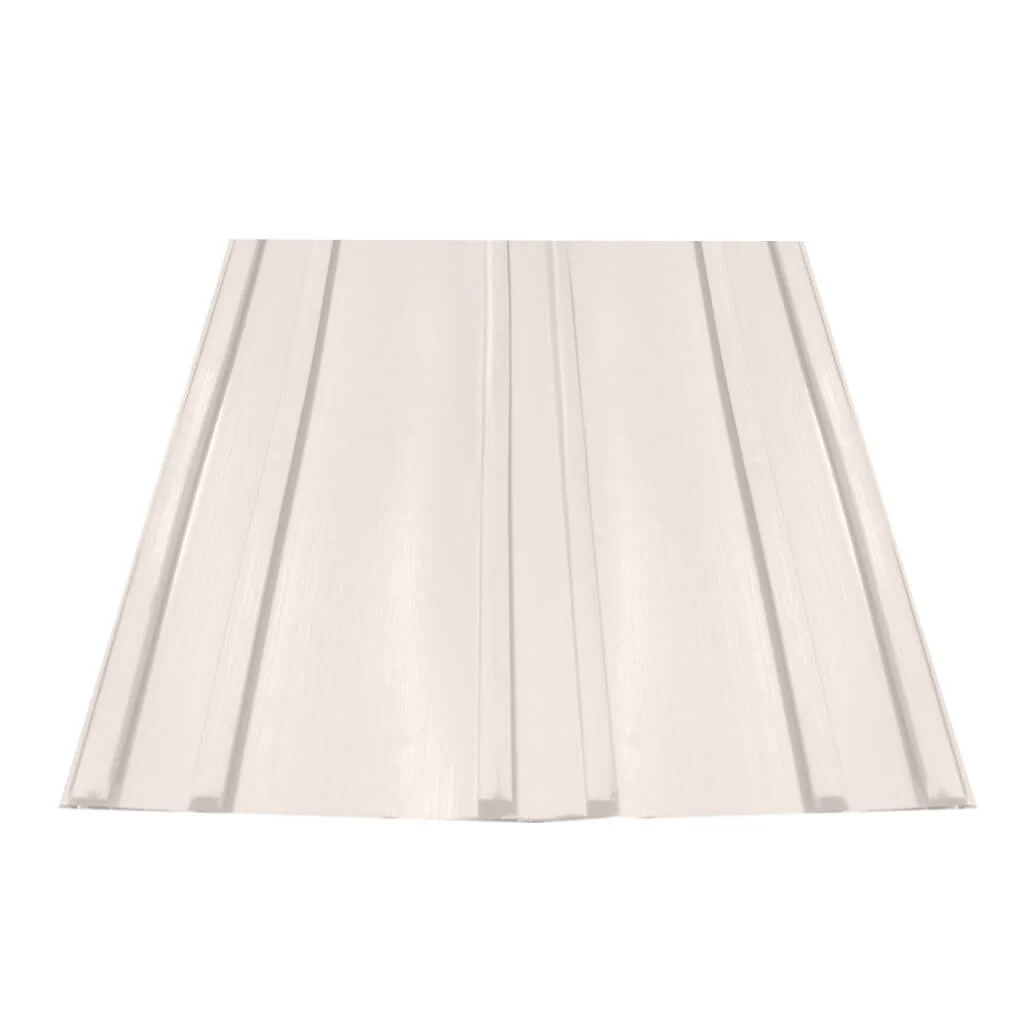

BoMetals BS-17532 17 in. x 5/32 in. x 25 ft. Style-777 Base Seal PVC Waterstop
BoMetals BS-17532 17 in. x 5/32 in. x 25 ft. Style-777 Base Seal PVC Waterstop is used on grade or below grade in joints between concrete walls and slabs in backfilled retaining walls and in keyed construction joints in walls and slabs. It can be used in a variety of applications. The main usage is to prevent the passage of liquids in concrete joints in many different projects such as Dams, Tunnels, Water and Wastewater Treatment Plants, and other liquid retaining structures.
Features
- Good tensile strength and waterproof capability
- Tear resistance
- Not affected by weather, low temperature
- Flexible, and durability
- Long life
Specifications
| Manufacture Number | BS-17532 |
| Material | PVC |
| Water Absorption | 0.15% Max (ASTM D-570) |
| Tear Resistance, lb/in. (kg/cm) | 300 (53.5) (ASTM D-624) |
| Specific Gravity (+/- 0.05) | 1.38 (ASTM D-792) |
| Hardness, Shore A (+/-5, 10 sec. delay) | 80 (D-2240) |
| Tensile, psi (kg/cm2) | 2,000 (140.6) (ASTM D-638, Type IV) |
| Elongation | 350% (ASTM D-638, Type IV) |
| Low Temperature | -35°F/-37°C (ASTM D-746) |
| Info and Guides | Product Date Sheet - BS-17532 |
