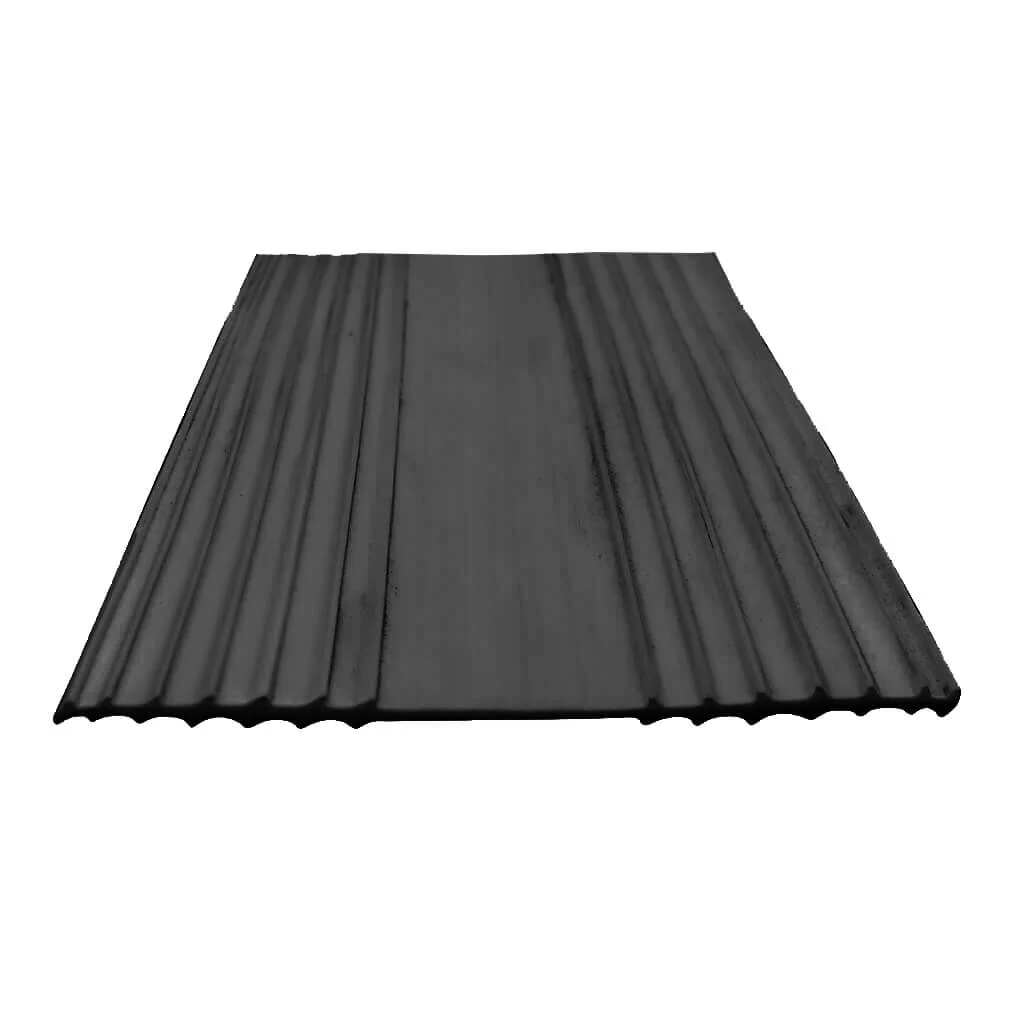

BoMetals FR-4316WS 4 in. x 3/16 in. x 50 ft. Style-781 Flat Ribbed Non-Virgin PVC Waterstop
BoMetals FR-4316WS 4 in. x 3/16 in. x 50 ft. Style-781 Flat Ribbed Non-Virgin PVC Waterstop
BoMetals FR-4316WS 4 in. x 3/16 in. x 50 ft. Style-781 Flat Ribbed Non-Virgin PVC Waterstop is used in construction joints where little to no movement is anticipated and where high bond strength is desired. It can be used in a variety of applications. The main usage is to prevent the passage of liquids in concrete joints in many different projects such as Dams, Tunnels, Water and Wastewater Treatment Plants, and other liquid retaining structures.
Features
- Used in construction joints
- Use where little or no movement is anticipated
- Economical
- Easy to handle in field
- Easy to splice in field
Specifications
| Manufacture Number | FR-4316WS |
| Material | Non-Virgin PVC |
| Water Absorption | 0.15% Max (ASTM D-570) |
| Tear Resistance, lb./in. (kg/cm) | 300 (53.5) (ASTM D-624) |
| Specific Gravity (+/- 0.05) | 1.38 (ASTM D-792) |
| Hardness, Shore A (+/-5, 10 sec. delay) | 80 (D-2240) |
| Tensile, psi (kg/cm2) | 2,000 (140.6) (ASTM D-638, Type IV) |
| Elongation | 350% (ASTM D-638, Type IV) |
| Low Temperature | -35°F/-37°C (ASTM D-746) |
| Length | 50 ft. |
| Width | 24 in. |
| Height | 4 in. |
BoMetals FR-4316WS 4 in. x 3/16 in. x 50 ft. Style-781 Flat Ribbed Non-Virgin PVC Waterstop
BoMetals FR-4316WS 4 in. x 3/16 in. x 50 ft. Style-781 Flat Ribbed Non-Virgin PVC Waterstop is used in construction joints where little to no movement is anticipated and where high bond strength is desired. It can be used in a variety of applications. The main usage is to prevent the passage of liquids in concrete joints in many different projects such as Dams, Tunnels, Water and Wastewater Treatment Plants, and other liquid retaining structures.
Features
- Used in construction joints
- Use where little or no movement is anticipated
- Economical
- Easy to handle in field
- Easy to splice in field
Specifications
| Manufacture Number | FR-4316WS |
| Material | Non-Virgin PVC |
| Water Absorption | 0.15% Max (ASTM D-570) |
| Tear Resistance, lb./in. (kg/cm) | 300 (53.5) (ASTM D-624) |
| Specific Gravity (+/- 0.05) | 1.38 (ASTM D-792) |
| Hardness, Shore A (+/-5, 10 sec. delay) | 80 (D-2240) |
| Tensile, psi (kg/cm2) | 2,000 (140.6) (ASTM D-638, Type IV) |
| Elongation | 350% (ASTM D-638, Type IV) |
| Low Temperature | -35°F/-37°C (ASTM D-746) |
| Length | 50 ft. |
| Width | 24 in. |
| Height | 4 in. |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BoMetals FR-4316WS 4 in. x 3/16 in. x 50 ft. Style-781 Flat Ribbed Non-Virgin PVC Waterstop is used in construction joints where little to no movement is anticipated and where high bond strength is desired. It can be used in a variety of applications. The main usage is to prevent the passage of liquids in concrete joints in many different projects such as Dams, Tunnels, Water and Wastewater Treatment Plants, and other liquid retaining structures.
Features
- Used in construction joints
- Use where little or no movement is anticipated
- Economical
- Easy to handle in field
- Easy to splice in field
Specifications
| Manufacture Number | FR-4316WS |
| Material | Non-Virgin PVC |
| Water Absorption | 0.15% Max (ASTM D-570) |
| Tear Resistance, lb./in. (kg/cm) | 300 (53.5) (ASTM D-624) |
| Specific Gravity (+/- 0.05) | 1.38 (ASTM D-792) |
| Hardness, Shore A (+/-5, 10 sec. delay) | 80 (D-2240) |
| Tensile, psi (kg/cm2) | 2,000 (140.6) (ASTM D-638, Type IV) |
| Elongation | 350% (ASTM D-638, Type IV) |
| Low Temperature | -35°F/-37°C (ASTM D-746) |
| Length | 50 ft. |
| Width | 24 in. |
| Height | 4 in. |
