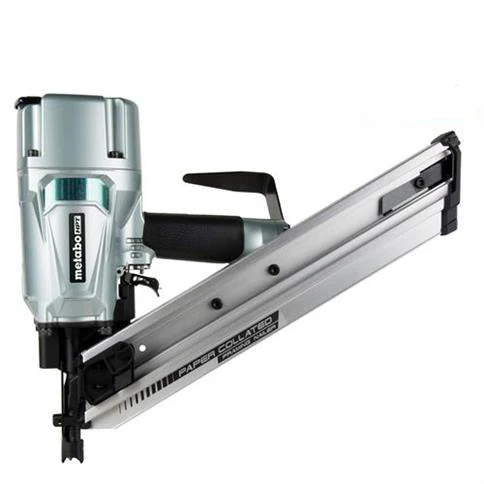

Metabo HPT NR83AA5M 30-Degree 3-1/4 in. Paper Collated Framing Nailer
METABO HPT NR83AA5M STRIP FRAMING NAILER 3-1/4"
TheĀ Paper CollatedĀ Framing Nailer (NR83AA5)Ā is used for floor and wall framing, truss build-up, window build-up, construction of sub-flooring and roof decking, wall sheathing and mobile home and modular home construction. The NR83AA5 is like the original NR83A framing nailer that you have come to trust, but now with an improved trigger design and sharing all the same internal parts as the original NR83A. The NR83AA5 relies on the same cylinder valve drive system as the NR83A, which offers both rapid response and great driving power.
Features
- Rapid response and increased durability with the cylinder drive system
- Accepts both 30 degree paper strip collated clipped head nails and 30 degree paper strip collated offset round head nails
- 2-Piece magazine for durability and replacement ease
- Selective actuation on trigger allows for either sequential or contact nailing
- Open nose design for easy nail extraction
Includes
- Safety Glasses (875769)
- Rafter Hook
- Framing Nailer
Specifications
| Fastener Type | Paper Strip Collation |
| Magazine Angle | 30 Degrees |
| Fastener Length Capacity | 2" - 3-1/4" |
| Fastener Diameter Range | .113 to .131 |
| Magazine Capacity | 86-94 |
| Magazine Loading | Rear |
| Operating Pressure | 70-120psi |
| Jam Clearing | Open Nose |
| Actuation | Selective (Sequential/Contact) |
| L x W x H | 18-1/8" x 4-1/4" x 14-3/16" |
| Weight w/o Hook | 9 lbs |
| Weight w/ Hook | 9.3 lbs |
