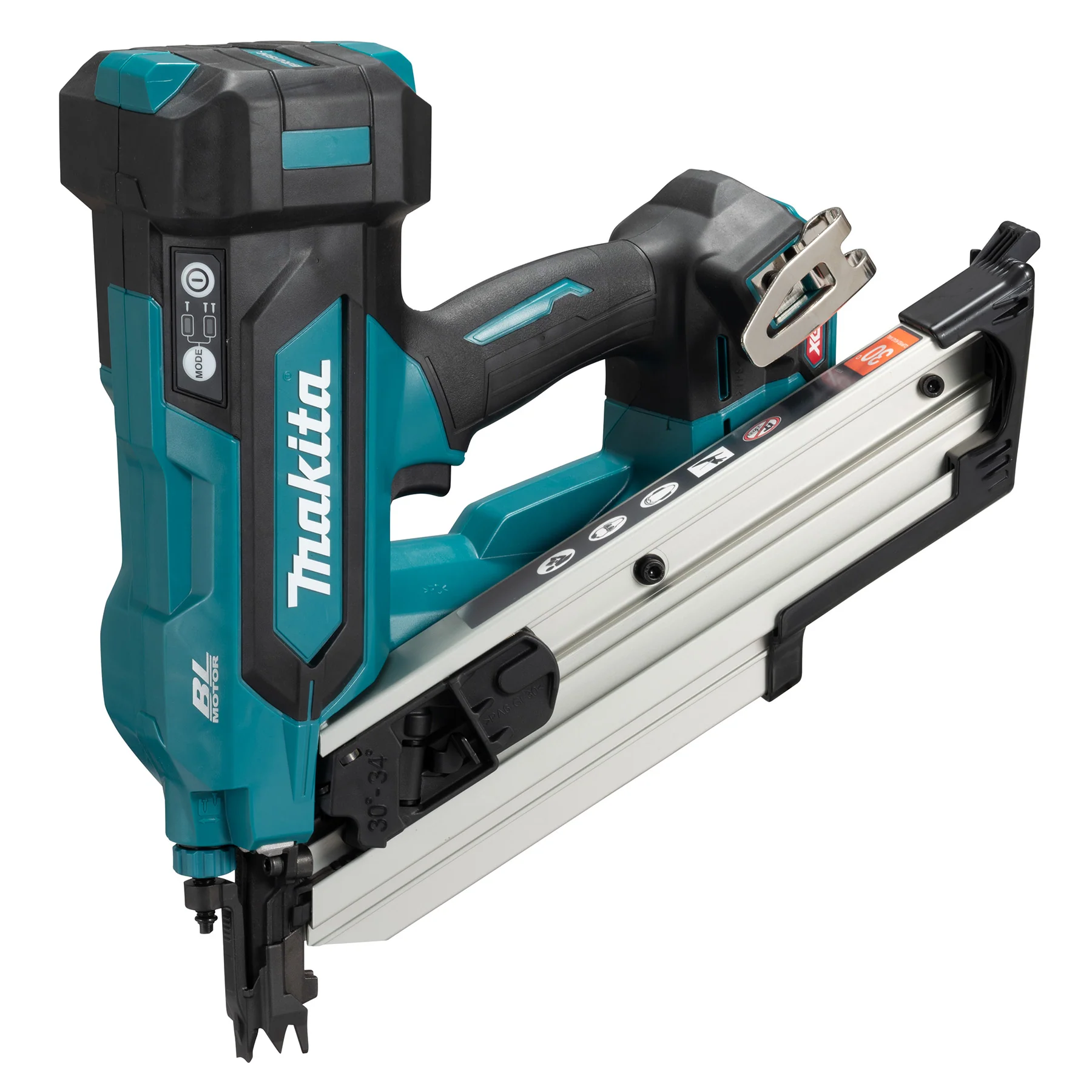

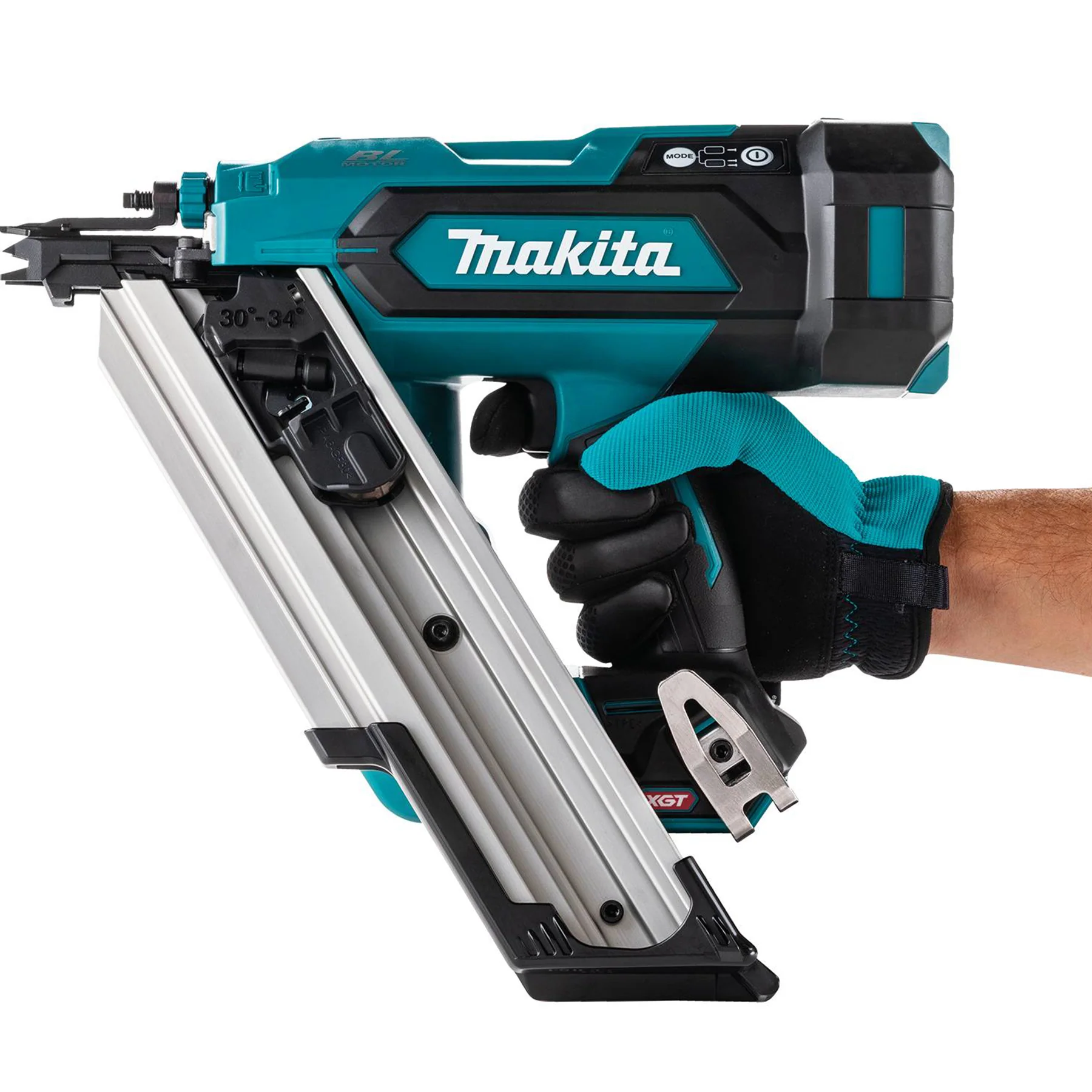

MAKITA BN001GZ01 40V Max XGT Brushless 3-1/2 in. Framing Nailer, 30-34° Clipped Head, Tool Only
MAKITA BN001GZ01 40V Max XGT Brushless 3-1/2 in. Framing Nailer, 30-34° Clipped Head, Tool Only
Features
- POWER : Delivers the power of Pneumatic
- SPEED : 2-mode selector switch allows operator to select sequential nailing or bump fire options with firing speed of up to 4 nails per second
- PRECISION : Drives clipped head nails into dense engineered lumber with power and ease
- EFFICIENCY : Drives up to 1,020 framing nails on a 2.5Ah battery
- Drives nails up to 3-1/2 with a pneumatic-like feel with the Air Spring driving system - for superior performance versus gas or flywheel models
- Anti-dry fire mechanism is activated before the number of remaining nails reaches zero, avoiding missed shots.
- Anti-slip nose tip designed with a shape that resists slipping when driving nails at an angle

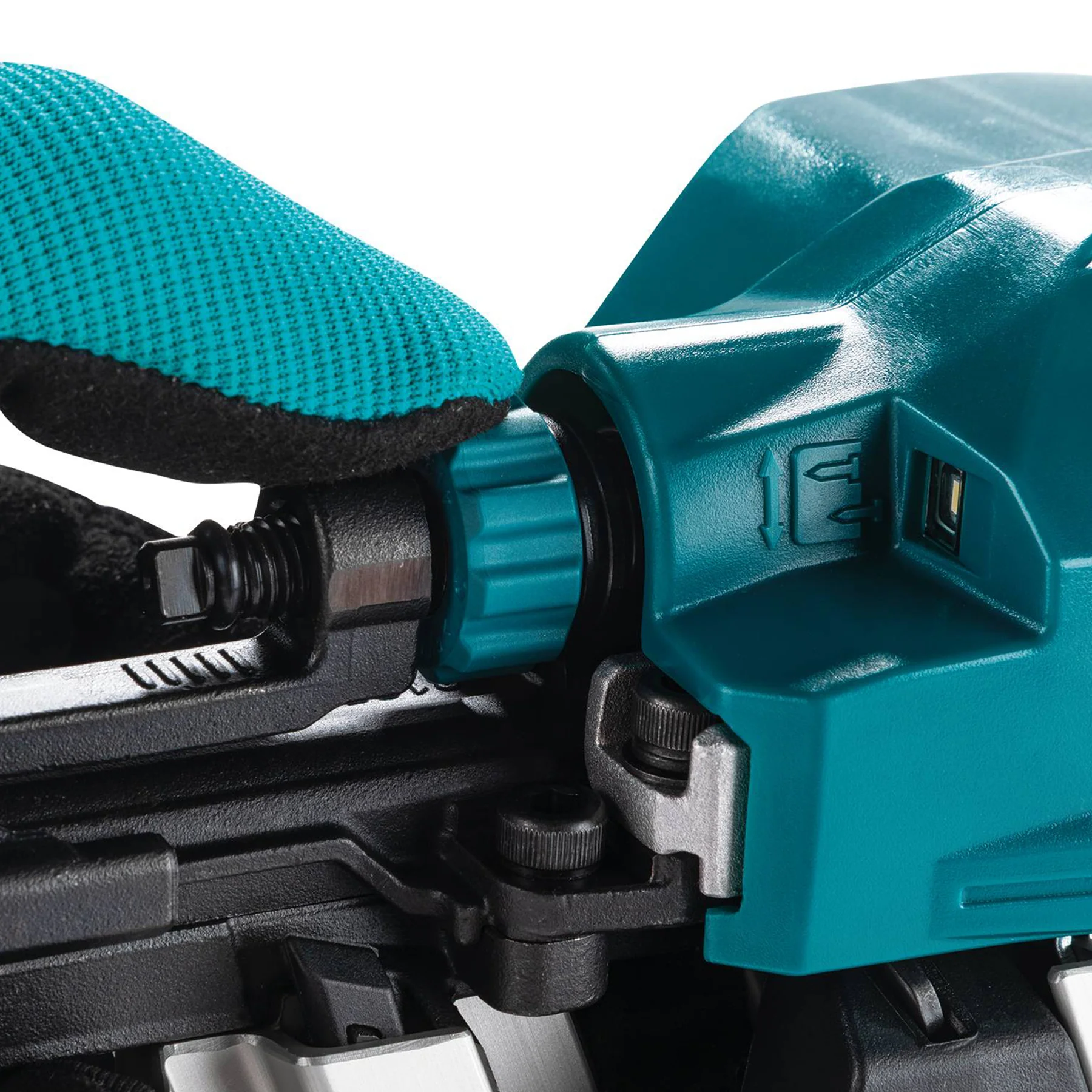

- Driving depth is adjustable with the dial
- Built-in L.E.D. light illuminates the work area
- eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
- Makita Purpose-Built Brushless Motor Ensures efficient firing while maintaining consistent power.
- Rear lock-and-load magazine, with 58 nail capacity for maximum efficiency
- Ergonomically designed handle with rubberized soft grip provides increased comfort
- Window for checking remaining nail quantity

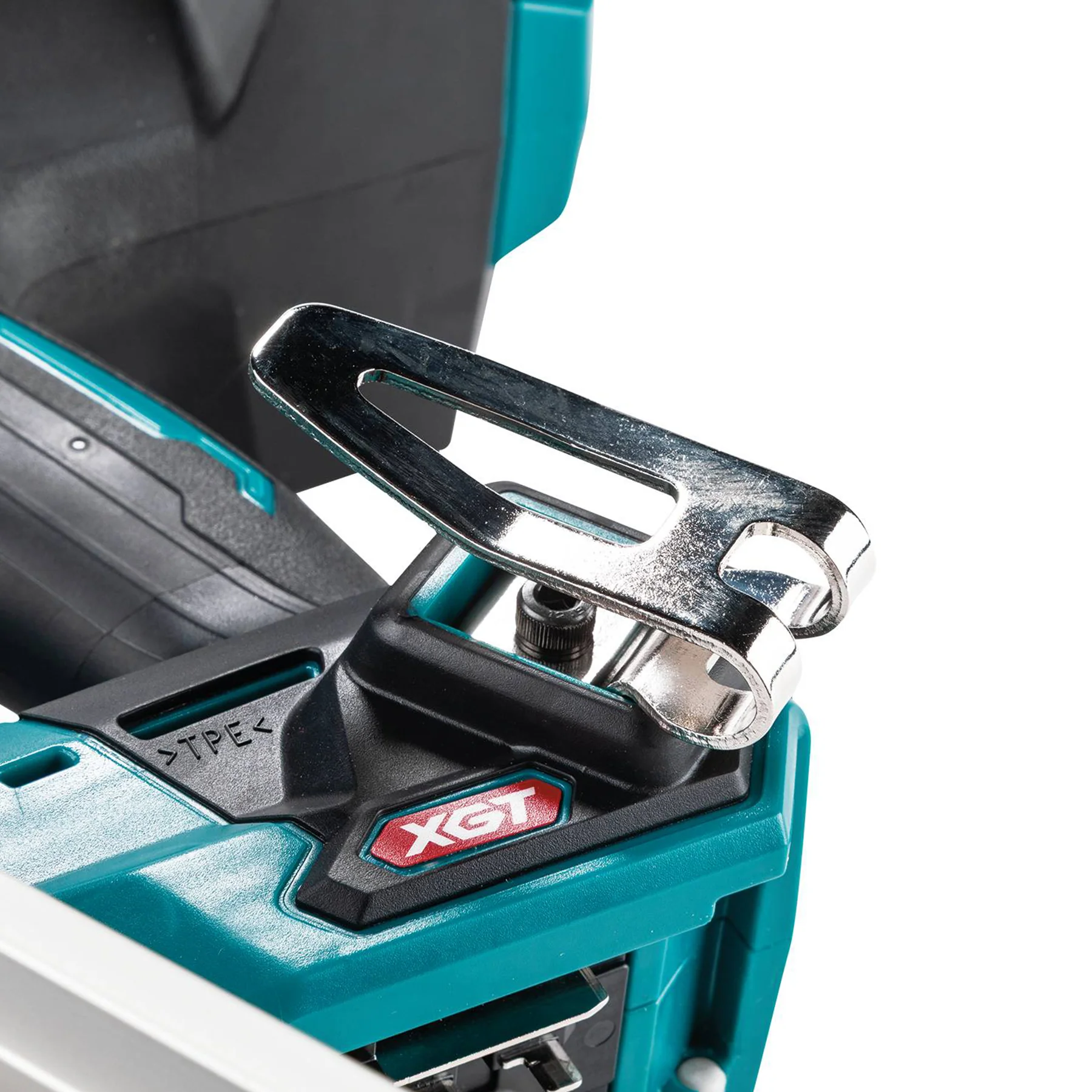

- Belt Hook with retractable extra-wide tool hook secures the tool when not in use
Items Included: Batteries and Charger Sold Separately. Nose Adapter (4133Y2-4), Hang Hook (141X57-7), Hook (347C14-9), Hex Wrench 4 (783202-0)
Shipping Dimensions (Length x Width x Height) & Weight : 16.1 In. X 7.4 In. X 14.4 In. Weight : 12.5 Lb.
Specifications
| Battery Capacities | 40V Max Li-Ion |
| Figure of Nail Head | Clipped Head |
| Nail Length | 2" - 3-1/2" (50 mm - 90 mm) |
| Shank Diameter | 0.113" - 0.131" |
| Magazine Capacities | 51 - 58 Nails |
| Nail Collation Angle | 30° - 34° |
| Dimensions (L x W x H) | 12-7/8" x 7-3/8" x 14-1/8" (326 mm x 186 mm x 358 mm) |
| Net Weight | 10.2 lbs (4.6 kg) |
