Milwaukee 3704-21T 4000 ft M18™ Battery Dual Slope Rot Laser Level Kit
Description

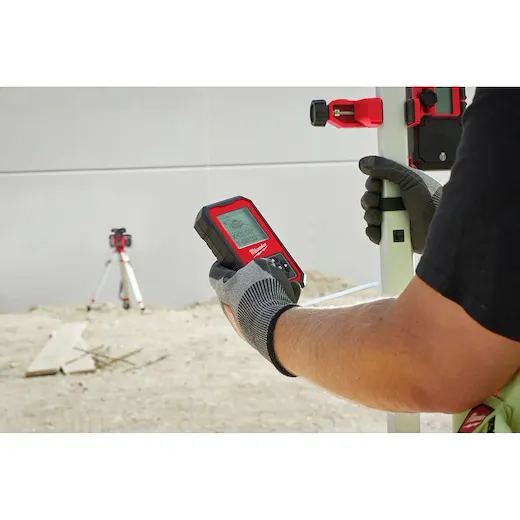

Our M18™ red exterior dual slope rotary laser level kit with receiver & remote features impact protection and a simplified setup. Designed for harsh jobsite conditions, we ensure your laser is protected, withstanding up to a 1.5 M drop and a 2 M tripod tip. Our receiver has simplified menu navigation and a user-friendly design. The Laser's remote control provides a duplicated display to the interface on the laser itself, which provides the ability to adjust the slope remotely. The Receiver will detect the laser up to 4000 ft (Diameter) and has built-in strobe light protection, reducing interference and downtime on the jobsite. The included Rotary Laser Tripod is a stable rotary laser mounting solution. Its durable aluminum design withstands more impacts and tips on the jobsite. This laser is the ultimate tool for accurate results for all leveling, aligning and squaring jobs. The M18™ red exterior dual slope rotary laser is a part of the M18™ system, fully compatible with over 200+ solutions.
Feature Bullets
- Withstands 1.5 m drops - reinforced housing
- Simplified menu navigation
- Remote slope adjustment - duplicated display
- 1/16 in Horizontal accuracy @ 100 ft/1/8 in vertical accuracy @ 100 ft
- 4000 ft (Diameter) working range w/receiver
- Laser receiver: reduces interference - strobe light protection
- Receiver features automatic grade match
- 600, 900, 1200 rpm modes
- Low/high bump sensitivity modes
- IP 66 Rated protection
- 5/8-11 Threaded insert
- Grade rod - 8 ft with ft & in graduations
- ONE-KEY™ compatible - track and manage tool's location
- Fits all M18™ batteries
Specifications:
Type: Dual Slope
Power Supply: M18™ Battery
Measuring Range: 4000 ft
Accuracy: 1/16 in Horizontal Accuracy @ 100 ft, 1/8 in Vertical Accuracy @ 100 ft
Laser Class: Class 2
Overall Length: 12.1 in
Overall Width: 10.2 in
Overall Height: 10 in
Housing Material: Polycarbonate, Glass Filled Nylon, Nylon
Number of Batteries: 1
Includes: (1) 3704-21 M18™ Red Exterior Dual Slope Rotary Laser Level Kit with Receiver & Remote, (1) 3714 Red Exterior Dual Slope Rotary Laser Receiver, (1) 481828 M18™ REDLITHIUM™ XC Extended Capacity Battery, (1) 48-59812 M18™ & M12™ Multi-Voltage Charger, (1) Dual Slope Rotary Laser Remote Control, (1) 48-35-3700 Rotary Laser Tripod, (1) Shoulder Strap, (1) Grade Rod, (1) Receiver Clamp, (2) AA Batteries, (1) Carrying Case
Application: For 90 Degree Square Applications, Acoustical Tile, Alignment, All-Purpose, Asphalt, Block, Brick, Concrete, Duct, Leveling, Masonry Applications
Warranty: 5 Years Tool, 3 Years Battery, 2 Years Receiver, 3 Years Tripod
Country of Origin: Vietnam
Documents
Owners/User Manual
